World Leading Raman Grating Supplier

Ideal for when light is precious

As a world-renowned manufacturer of high throughput, low stray light spectrometers, we know what aspects of a gratings performance really matter, namely, high efficiency and low stray light. Our VPH transmission gratings offer both key performance criteria, in a robust, non-replicated, reliable, easy to handle package, making them ideal for low light level applications such as Raman and NIR spectroscopy. We trust their performance so much that we place them at the heart of all we design, why not do the same.

Features & Benefits

  • •

    Patented broad bandwidth grating designs

  • •

    Exceptional 1st order diffraction efficiency

  • •

    Low polarization sensitivity, uniform efficiency

  • •

    Near-zero scatter for less stray light

  • •

    Robust design allows easy cleaning & handling

  • •

    Wavelengths: 300-2500 nm

  • •

    Line densities: 150-5500 lines/mm

High-efficiency, low-stray-light VPH transmission gratings are ideal for demanding applications such as Raman and NIR spectroscopy.

Typical Spectroscopy Grating Specifications

WP-2400/589-xx
WP-HD1624/871-xx
WP-HD1600/884-xx
Design Bandwidth
535 – 635 nm
800 – 930 nm
790 – 960 nm
Diffraction Efficiency
≥ 85%
> 88%
> 86%
Spatial Frequency
2400 ± 1 lines/mm
1624 ± 1 lines/mm
1600 ± 1 lines/mm
Angle of Incidence
45°
45°
45°
Sizes Available (-xx)
16.2 x 22.2 x 2 mm
20 x 30 x 4 mm
46 x 62 x 6 mm
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
Surface Quality
60-40 scratch-dig
AR Coating
Optimized for the specified wavelength & angular range
Design Bandwidth
535 – 635 nm
Diffraction Efficiency

≥ 85%

Spatial Frequency

2400 ± 1 lines/mm

Angle of Incidence

45°

Sizes Available (-xx)

16.2 x 22.2 x 2 mm

Wavefront Distortion

< λ/5 rms @ 633 nm over a 25 mm diameter

Surface Quality
60-40 scratch-dig

AR Coating

Optimized for the specified wavelength & angular range

Nominal Wavelength

800 – 930 nm
Diffraction Efficiency
> 88%

Spatial Frequency

1624 ± 1 lines/mm

Angle of Incidence

45°

Sizes Available (-xx)

20 x 30 x 4 mm

Wavefront Distortion

< λ/5 rms @ 633 nm over a 25 mm diameter
Surface Quality
60-40 scratch-dig

AR Coating

Optimized for the specified wavelength & angular range

Nominal Wavelength

790 – 960 nm
Diffraction Efficiency
> 86%

Spatial Frequency

1600 ± 1 lines/mm

Angle of Incidence

45°

Sizes Available (-xx)

46 x 62 x 6 mm

Wavefront Distortion

< λ/5 rms @ 633 nm over a 25 mm diameter

Surface Quality
60-40 scratch-dig

AR Coating

Optimized for the specified wavelength & angular range

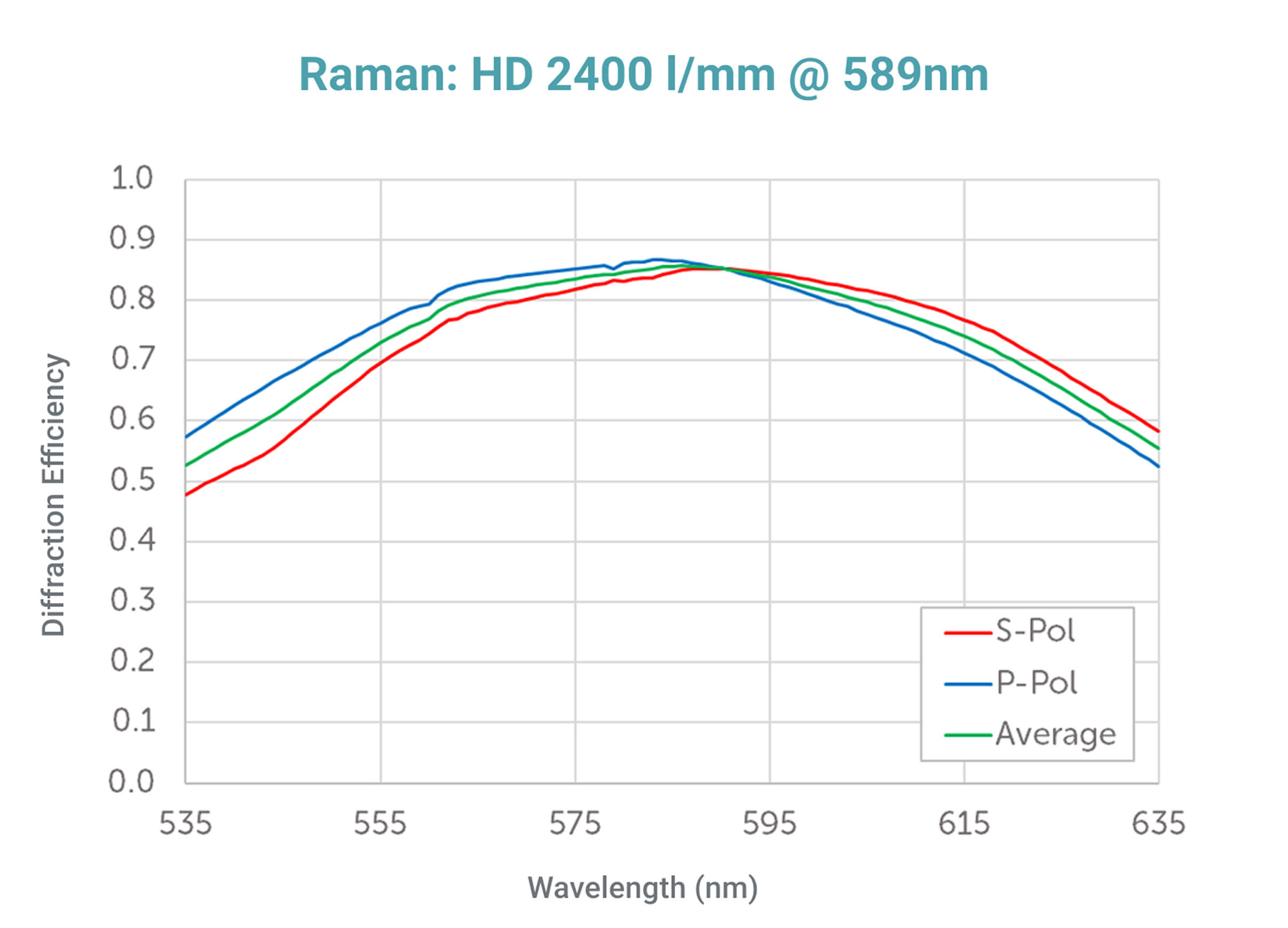

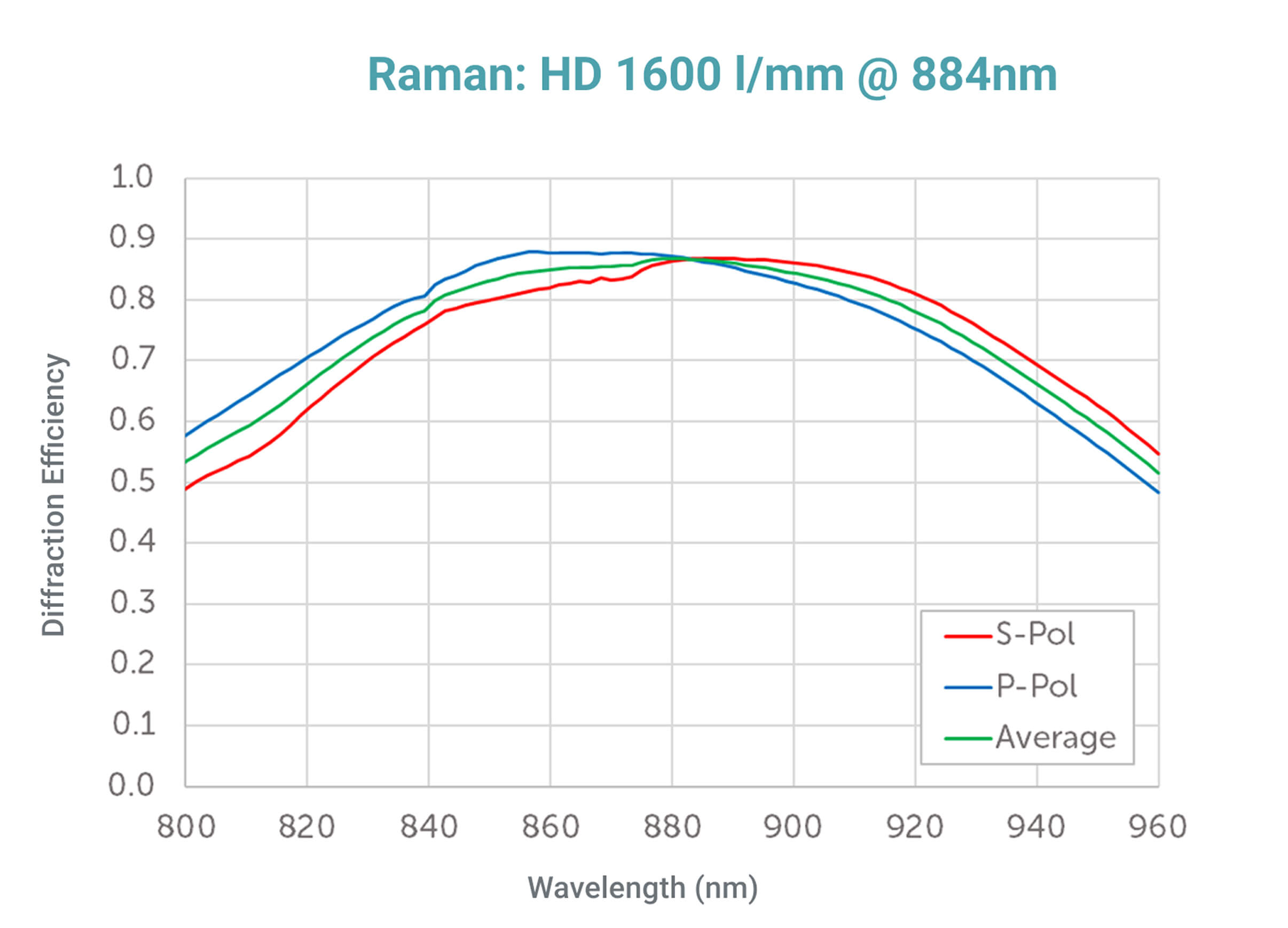

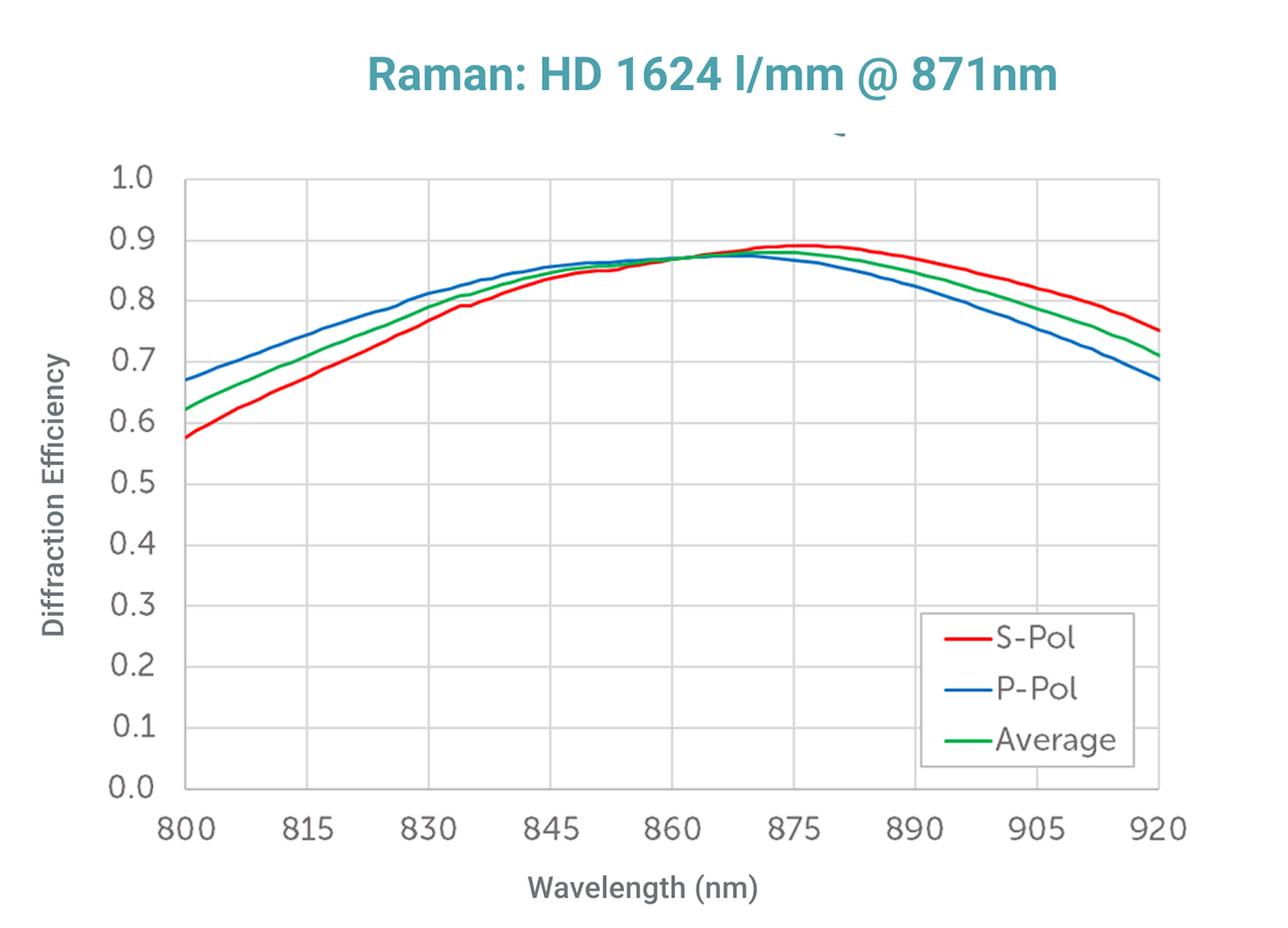

Design Graphs

Ready to Start Your Project?

Not sure where to start? Use our grating calculator, submit your parameters or custom design, and let our experts handle the rest.

Custom Grating Design

Contact us to start your custom grating design

Grating Calculator

Explore our Grating Calculator Tool
