Maximise your sensitivity and scan speed with our patented HD gratings. Achieving the clearest, deepest SD-OCT images requires broad bandwidth and maximum signal-to-noise ratio, so our HD gratings are engineered for high efficiency across all polarizations — even over wide 100–200 nm wavelength ranges.
Select from our stock options or leverage our OCT expertise to design your ideal grating. OEM partners rely on us from concept through product launch, with support for volumes ranging from tens to thousands. Wasatch Photonics can customize transmissive VPH gratings to meet your exact size, wavelength, and dispersion requirements.
WP-1200/840-xx
740 – 940 nm
790 – 890 nm
1220 – 1400 nm
Peak Efficiency @ CWL
≥ 85%, ave pol
≥ 82%, ave pol
≥ 86%, ave pol

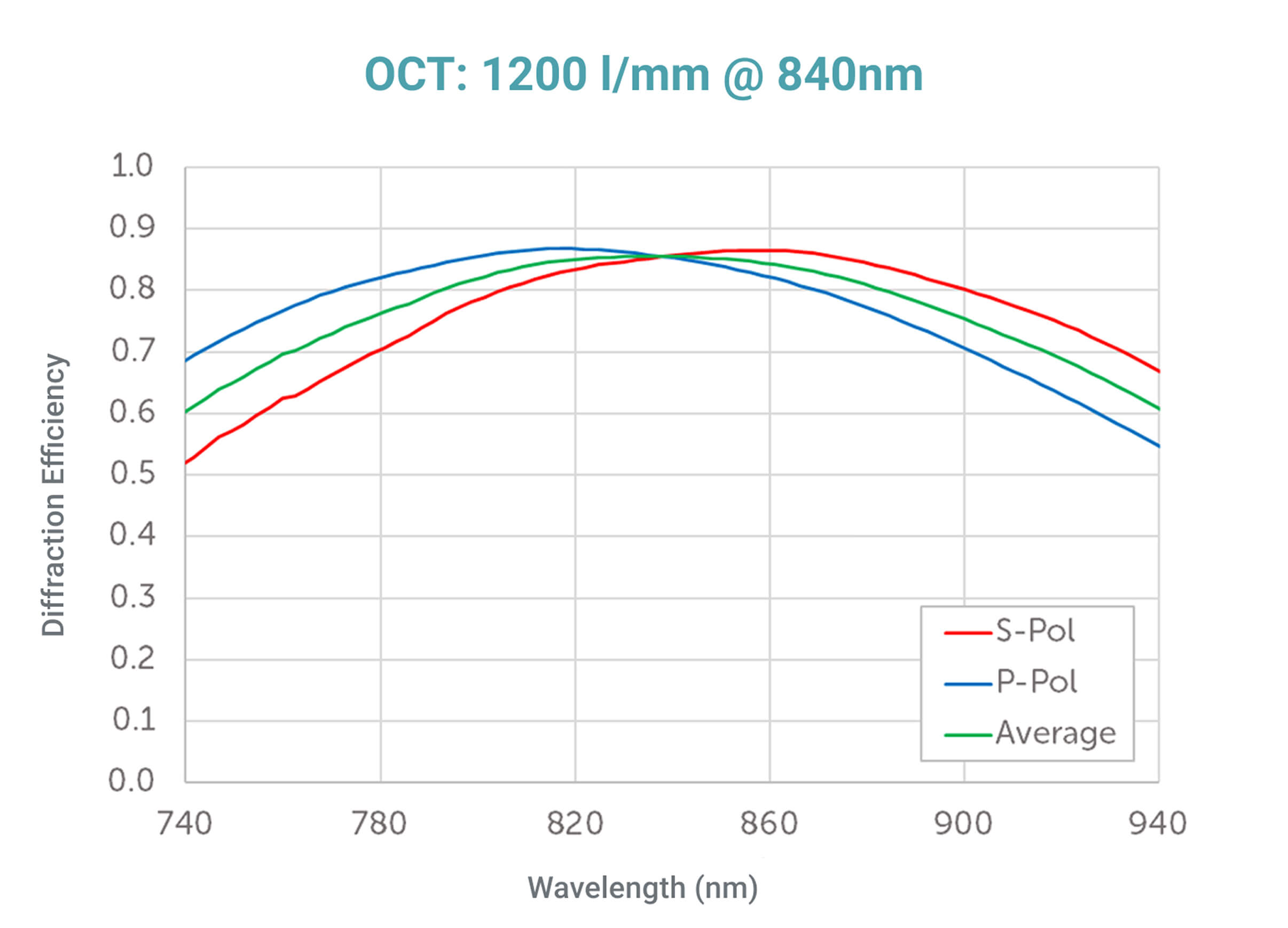

1200 ± 0.5 lines/mm
1800 ± 1 lines/mm
1145 ± 1 lines/mm
30.2° @ 840 nm
49.1° @ 840 nm
48.6° @ 1310 nm
< λ/5 rms @ 633 nm over a 25 mm diameter
60-40 scratch-dig
Optimized for the specified wavelength range & AOI
Nominal Wavelength
740 – 940 nm
≥ 85%, ave pol
Spatial Frequency
Angle of Incidence
Sizes Available (-xx)
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI
Nominal Wavelength
Peak Efficiency @ CWL
≥ 82%, ave pol
Spatial Frequency

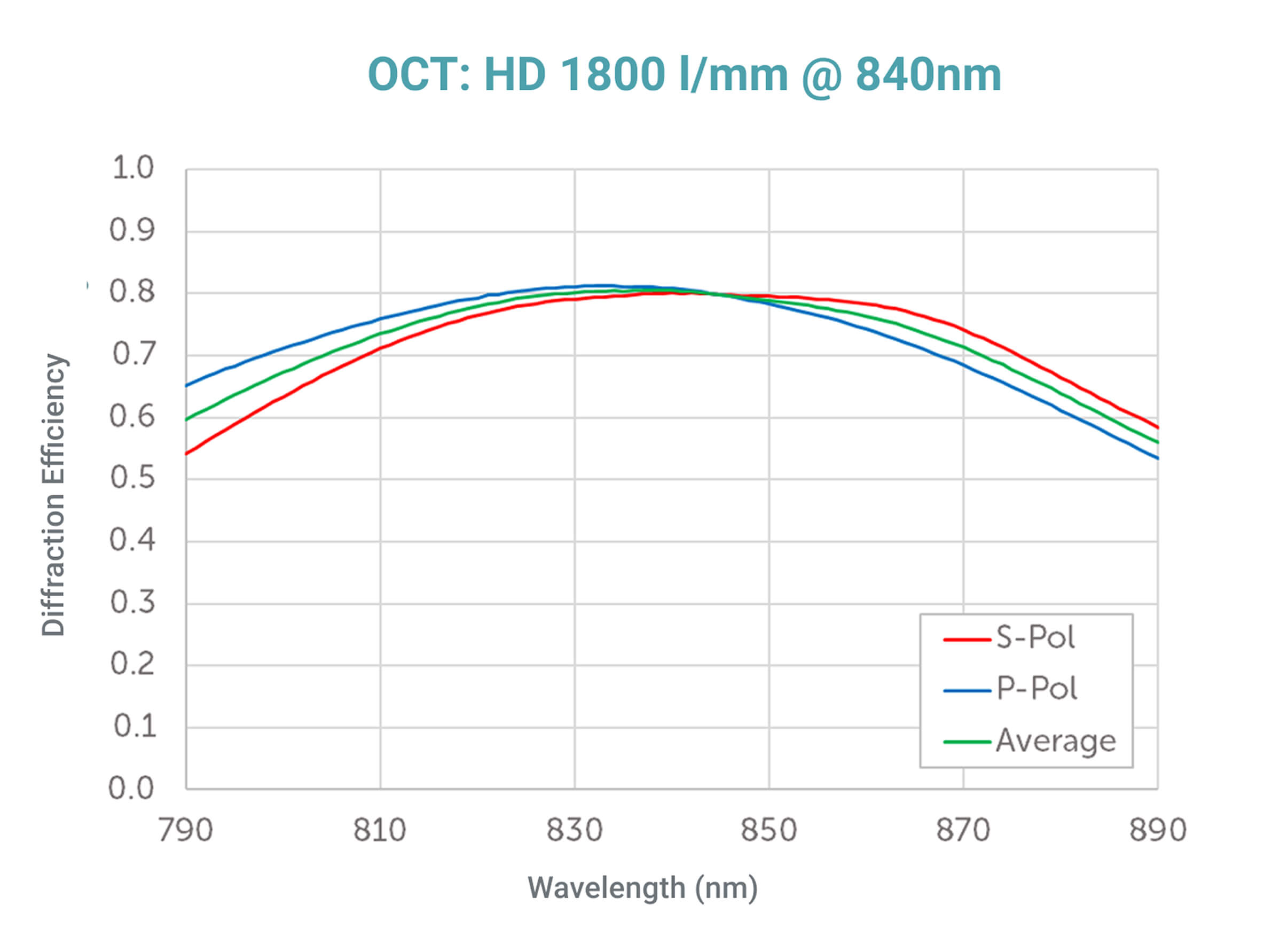

1800 ± 1 lines/mm
Angle of Incidence
49.1° @ 840 nm
Sizes Available (-xx)
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI
Nominal Wavelength
1220 – 1400 nm
Peak Efficiency @ CWL
≥ 86%, ave pol
Spatial Frequency

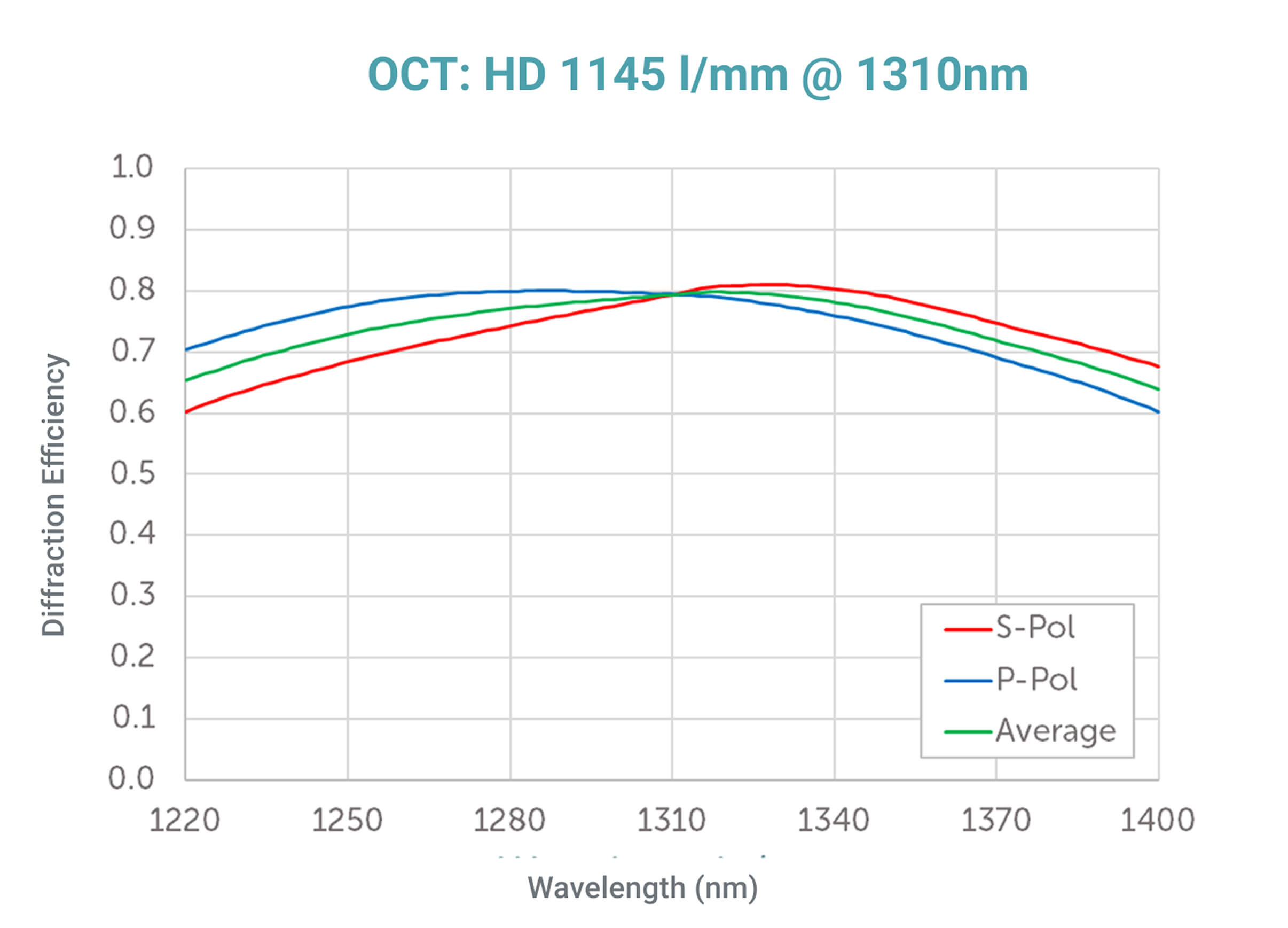

1145 ± 1 lines/mm
Angle of Incidence
48.6° @ 1310 nm
Sizes Available (-xx)
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI
Not sure where to start? Use our grating calculator, submit your parameters or custom design, and let our experts handle the rest.
