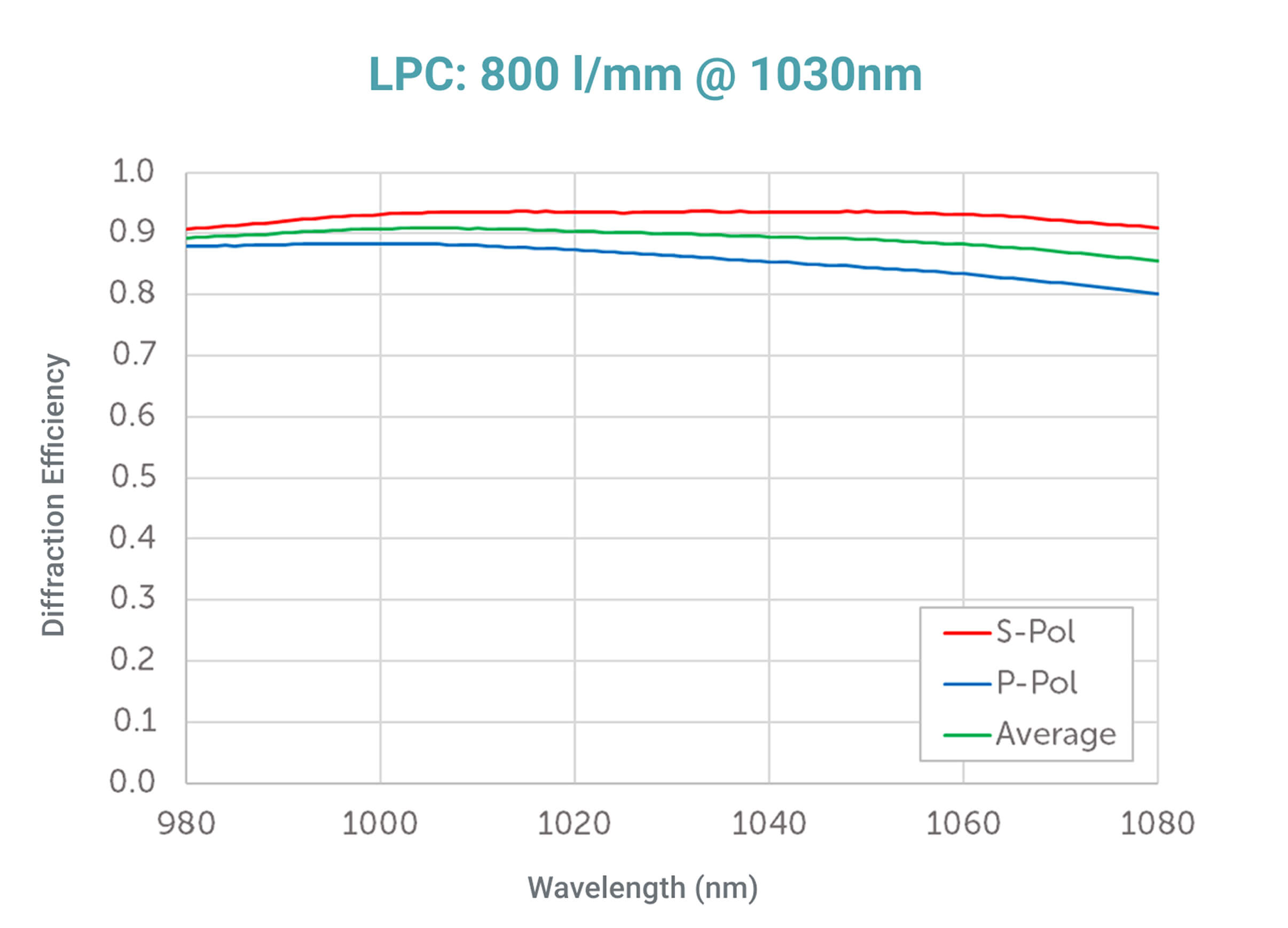

Nominal Wavelength
980 – 1080 nm
96-98% *
Spatial Frequency
800 ± 0.5 lines/mm
Angle of Incidence
24.3° @ 1030 nm
Sizes Available (-xx)
25 x 35 x 4 mm
30 x 45 x 6 mm
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI

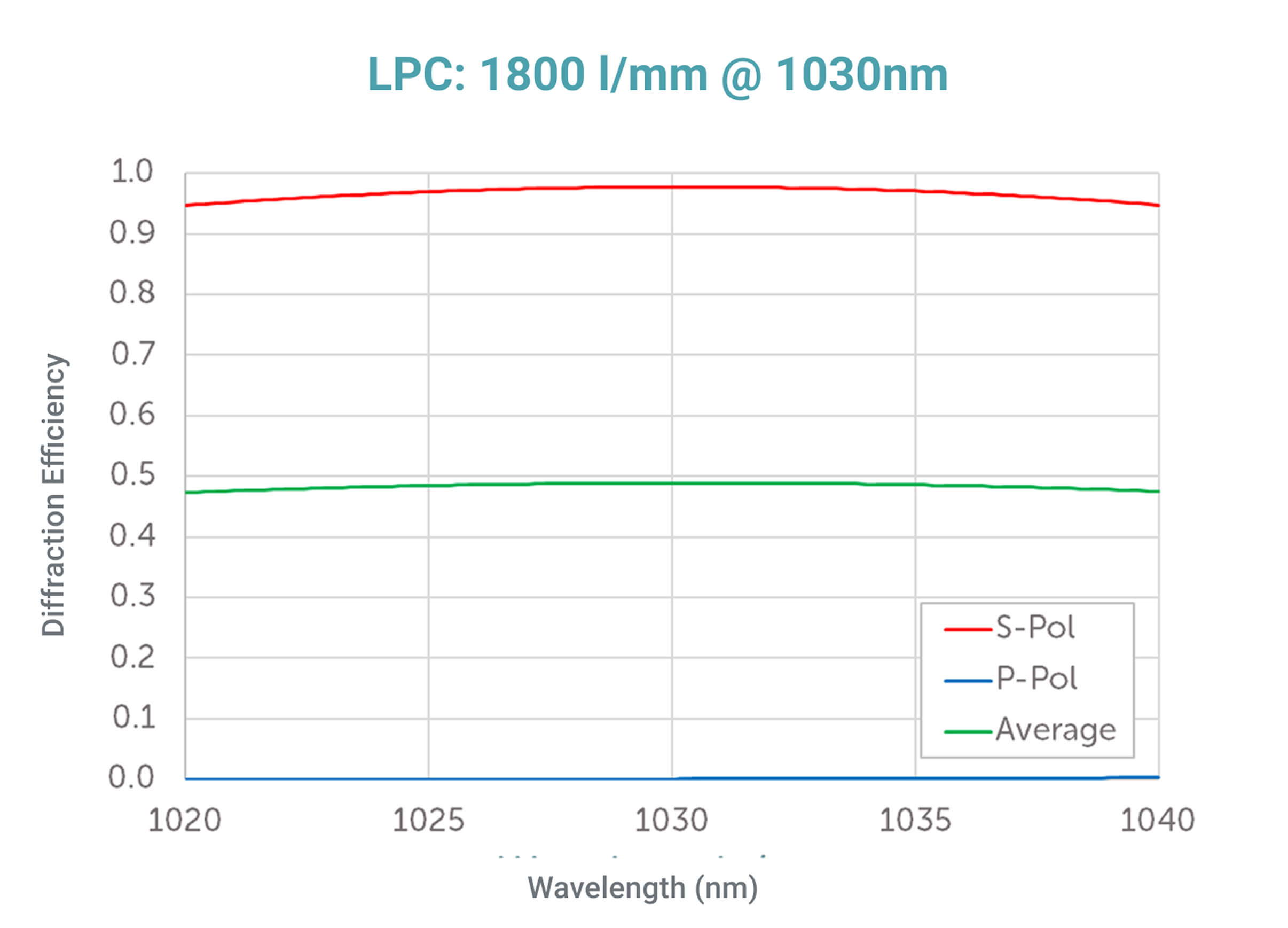

Nominal Wavelength
96-98% *
Spatial Frequency
Angle of Incidence
Sizes Available (-xx)
25 x 35 x 4 mm
30 x 45 x 6 mm
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI

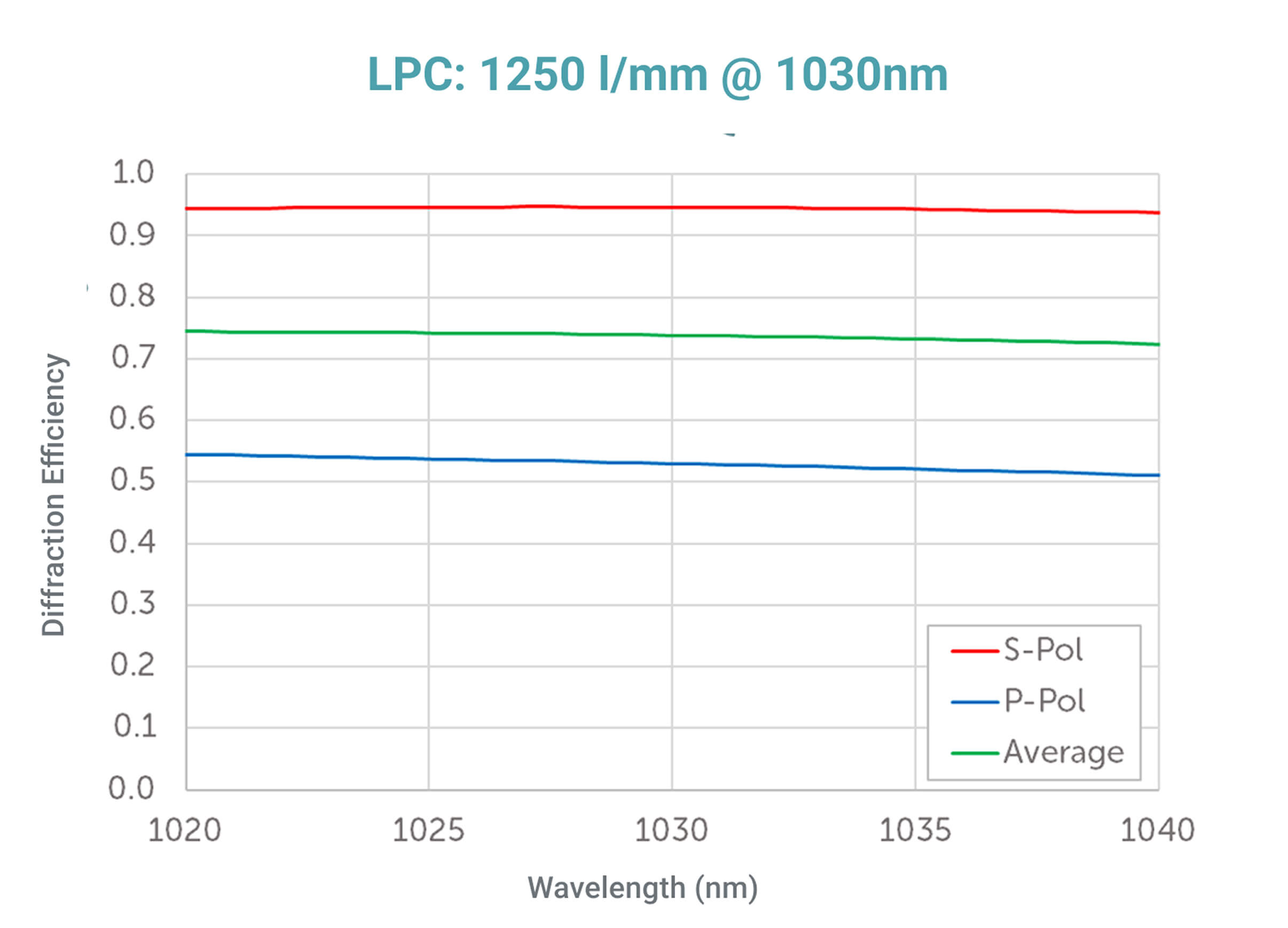

Nominal Wavelength
Diffraction Efficiency *
94-96% *
Spatial Frequency
Angle of Incidence
Sizes Available (-xx)
Wavefront Distortion
< λ/5 rms @ 633 nm over a 25 mm diameter
AR Coating
Optimized for the specified wavelength range & AOI
* For custom gratings, the minimum efficiency required will determine unit price, and may be up to 98%.
Not sure where to start? Use our grating calculator, submit your parameters or custom design, and let our experts handle the rest.
