Grating: 1700 l/mm @ 1030 nm CWL

  • AOI = 61.1° | Wavelength range 1020-1040 nm
  • Over 90% 1st order diffraction efficiency for s-polarization across the full spectral band
  • Uniform diffraction efficiency over the full clear aperture for minimal beam distortion
  • Low diffracted wavefront distortion, minimal scatter; easy cleaning & handling

$2,150.00

Size(s)
30 x 90 mm, 6 mm think
Part #
WP-1700/1030-30X90
Wavelength Range
1020-1040 nm
Surface Quality
60-40 scratch-dig
Diffracted Wavefront
< λ/5 rms @ 632.8 nm
Spatial Frequency
1700 l/mm +/- 0.5 l/mm
CWL
1030 nm
Angle of Incidence (AOI)
61.1° @ 1030 nm
Thickness Tolerance
+/- 0.25 mm
Dimensional Tolerance
+0/-0.15 mm
Chamfers
0.25-0.75 mm face width
AR Coating
Optimized for the specified wavelength range & AOI
Substrate & Cover Glass
3 mm fused silica substrate, 6 mm total thickness
Dimensions
A=30 mm B=90 mm T=6 mm
Clear Aperture
24 x 84 mm

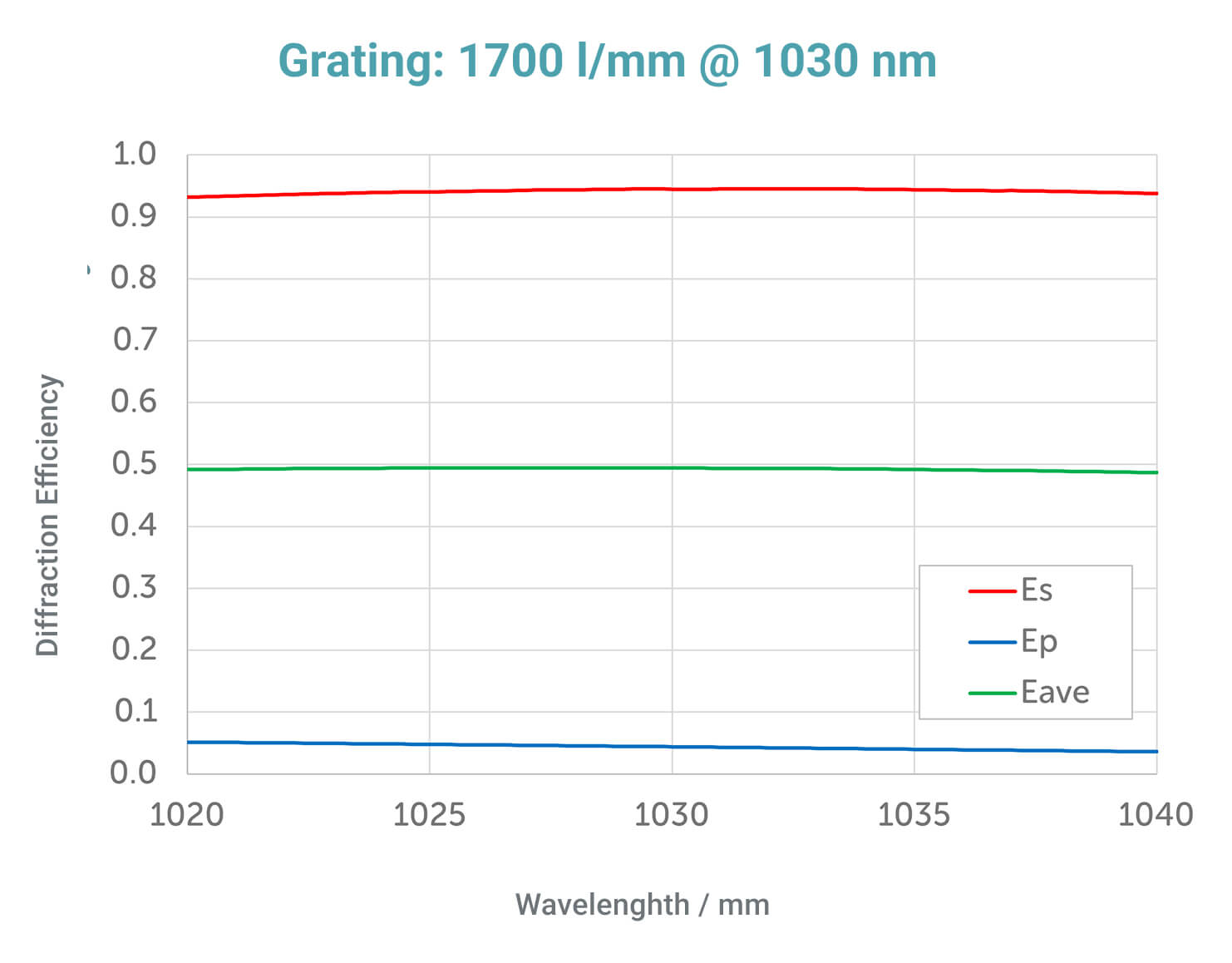

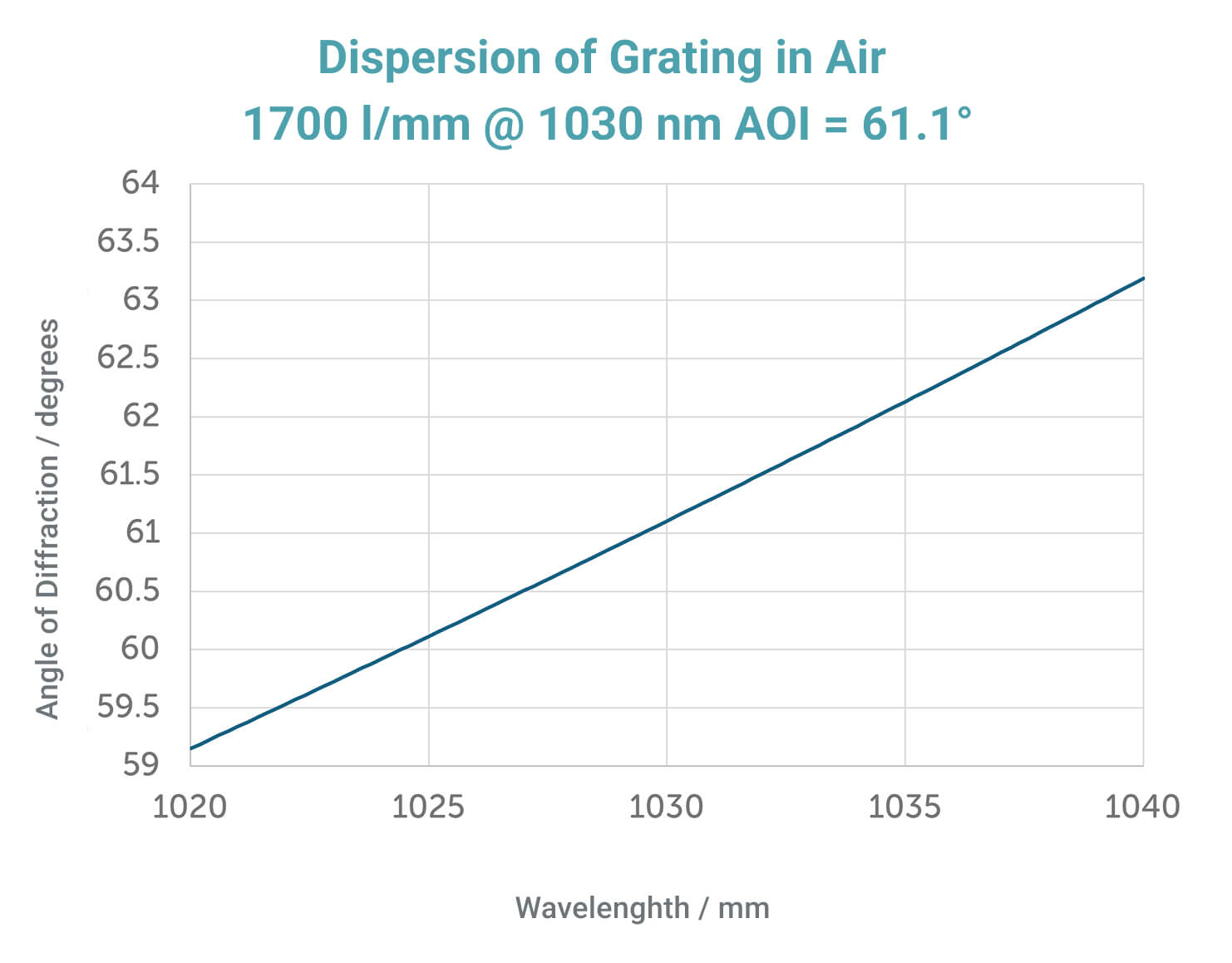

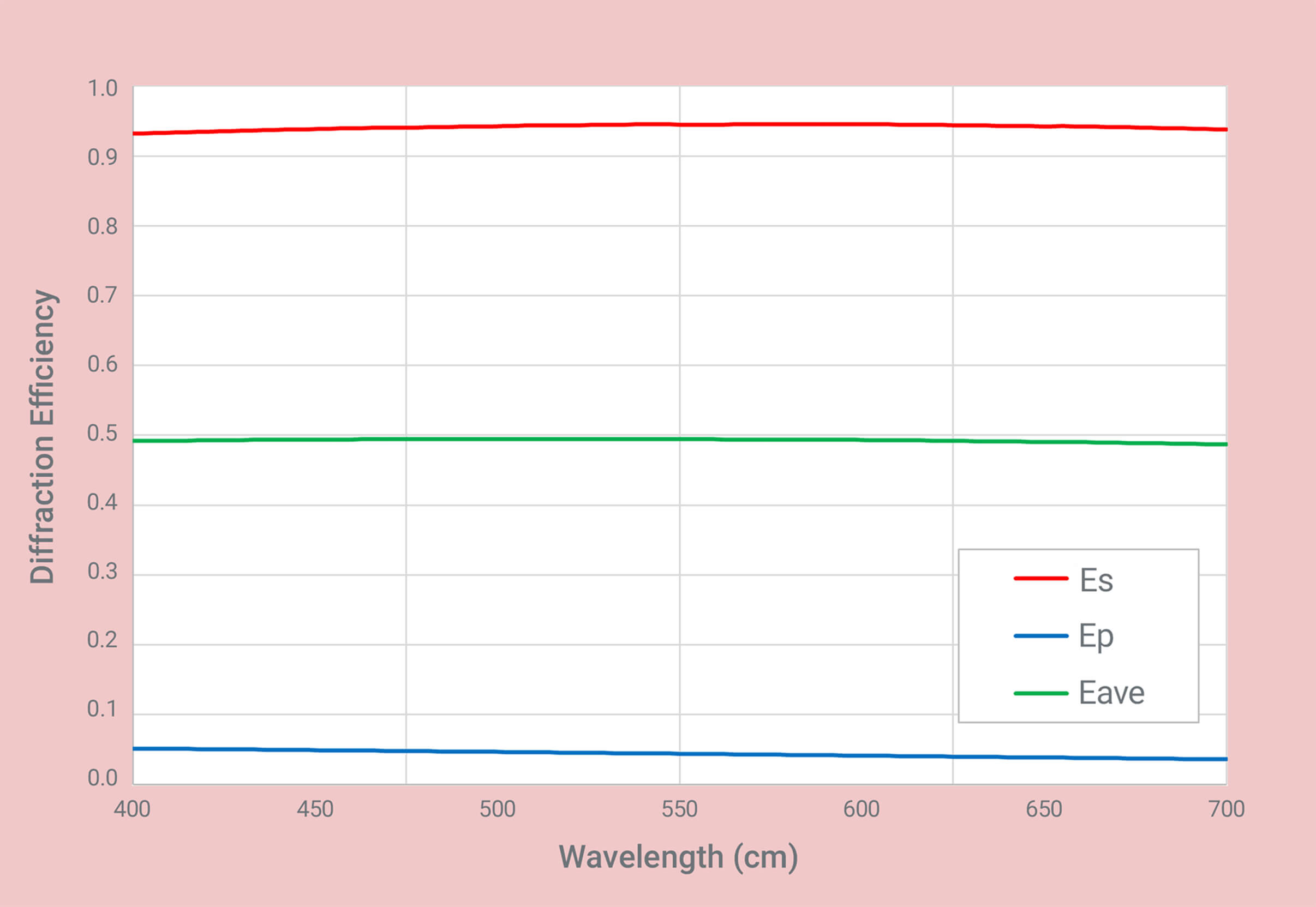

The diffraction efficiency and the angle of diffraction as a function of wavelength for this online shop grating are:
