VPH Transmission Gratings

Wasatch Photonics VPH transmission gratings deliver high efficiency, low polarization dependence, and uniform performance over broad bandwidths and large clear apertures – all in a robust, field-tested package. We offer multiple patented design technologies, which gives us more flexibility to recommend the best transmission grating for your unique application. Our capabilities span the UV/VIS/NIR:

Wavelengths: 300-2500 nm
Bandwidths: 5-800 nm
150-5000 lines/mm

Choose from our in-stock gratings, or talk to us about designing a custom grating or grism for your next R&D project. Are you developing a new OEM product? We can optimize a transmission grating to your exact needs. As an experienced volume gratings supplier, we offer quality, performance, and consistency you can count on.

Our transmission gratings deliver industry-leading performance for laser pulse compression, astronomy, and hyperspectral imaging. Our patented Dickson gratings and HD transmission gratings provide high efficiency over broad bandwidths. Therefore, they are ideal for demanding applications in optical coherence tomography (OCT), Raman & fluorescence spectroscopy, as well as other high speed, low light level applications. Contact our experts to discuss your needs.

Applications of VPH Transmission Gratings

Visible (400-750 nm)

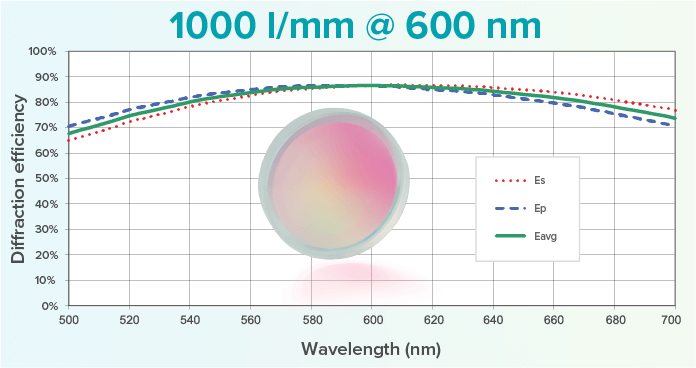

Grating: 1000 l/mm @ 600 nm CWL:

Price range: $695.00 through $1,500.00

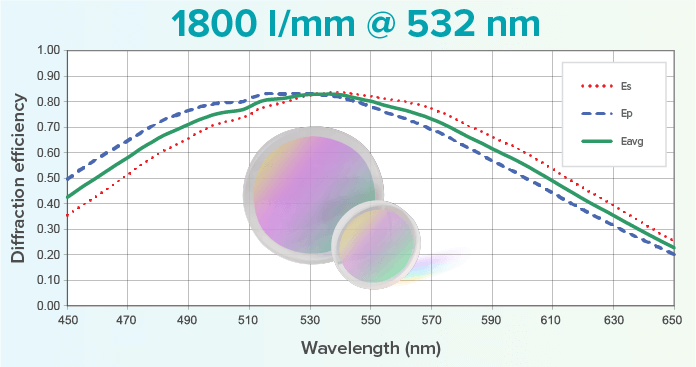

Grating: 1800 l/mm @ 532 nm CWL:

Price range: $495.00 through $990.00

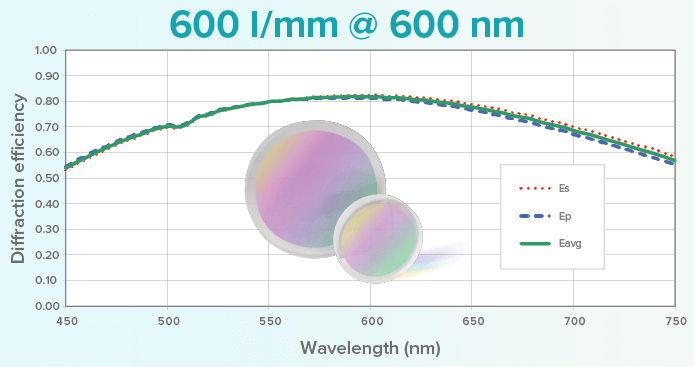

Grating: 600 l/mm @ 600 nm CWL:

450-750 nm, 1″ & 2″ diameter

Price range: $495.00 through $990.00

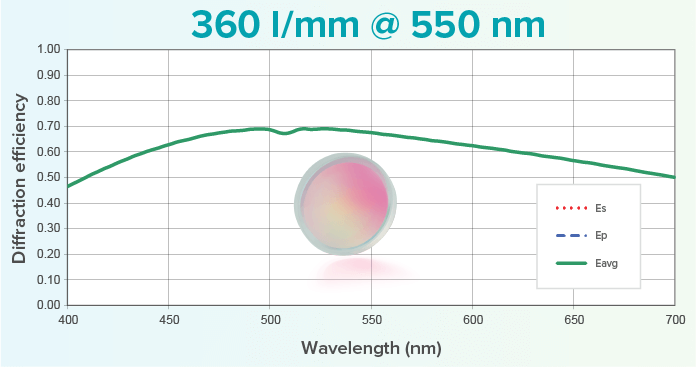

Grating: 360 l/mm @ 550 nm CWL:

$595.00

NIR (700-1050 nm)

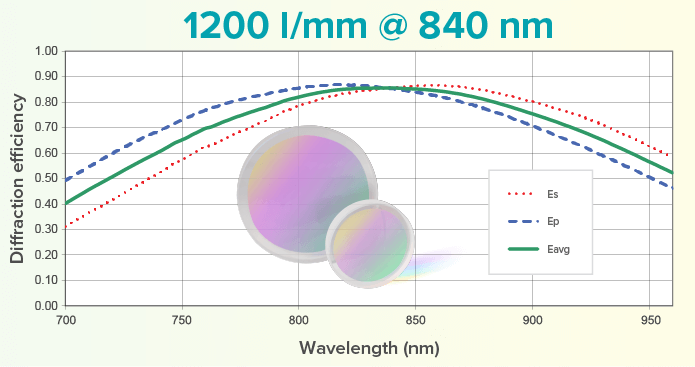

Grating: 1200 l/mm @ 840 nm CWL:

Price range: $495.00 through $990.00

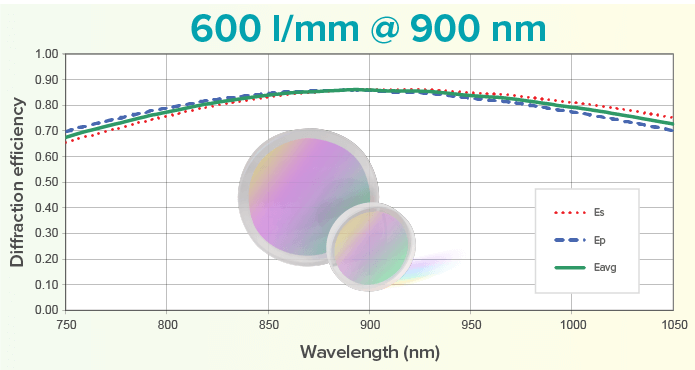

Grating: 600 l/mm @ 900 nm CWL:

Price range: $495.00 through $990.00

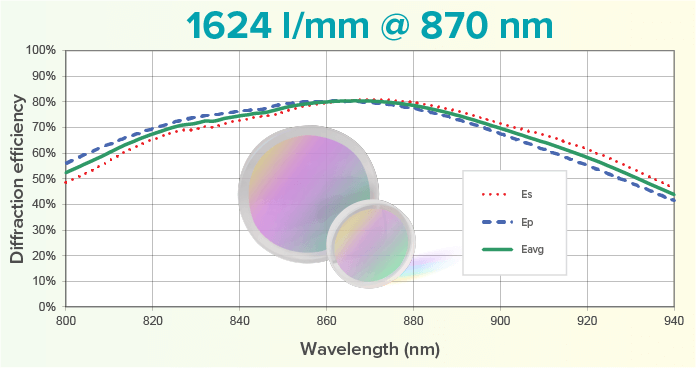

HD grating: 1624 l/mm @ 870 nm CWL:

Price range: $550.00 through $1,095.00

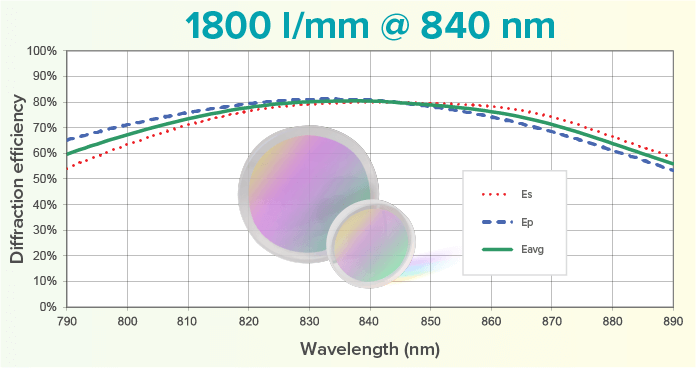

HD grating: 1800 l/mm @ 840 nm CWL:

SWIR (900-1800nm)

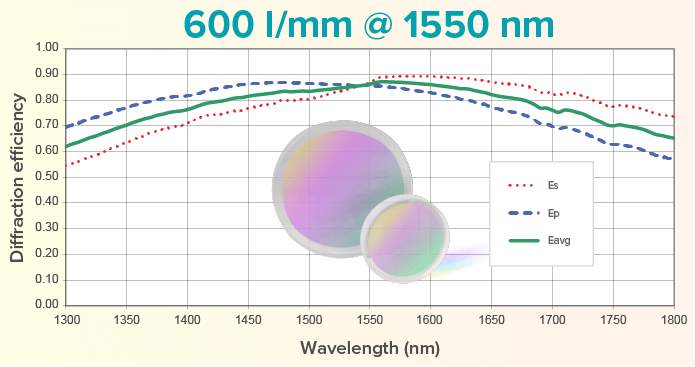

Grating: 600 l/mm @ 1550 nm CWL:

Price range: $495.00 through $990.00

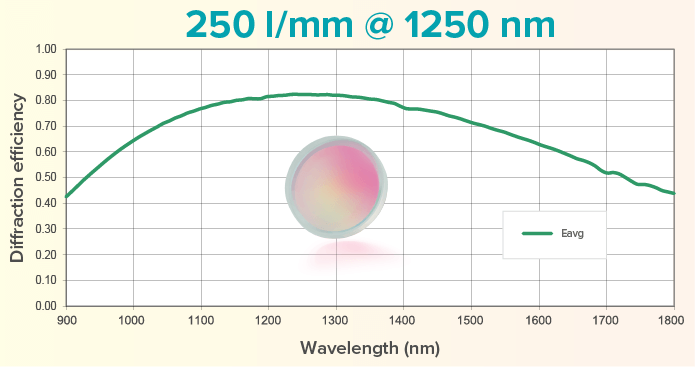

Grating: 250 l/mm @ 1250 nm CWL:

$695.00

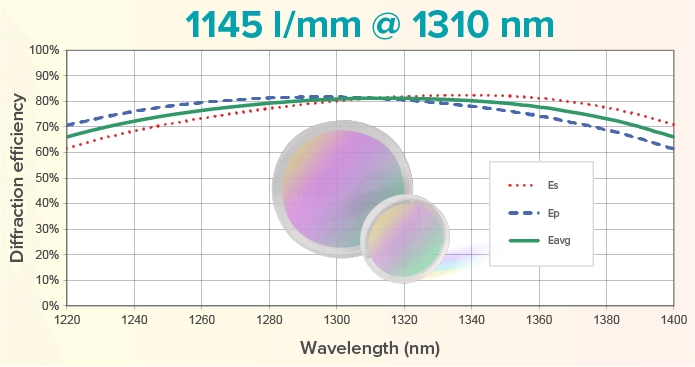

HD grating: 1145 l/mm @ 1310 nm CWL:

Price range: $550.00 through $1,095.00

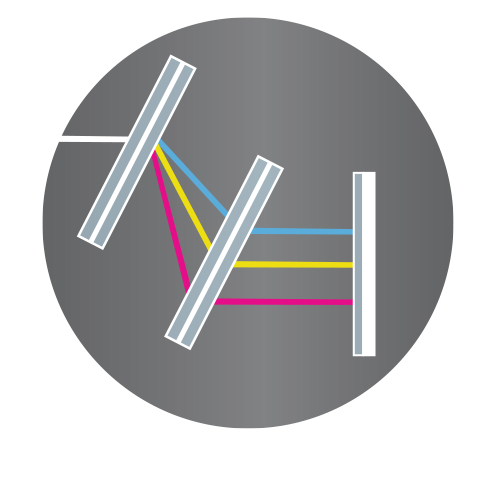

Pulse Compression

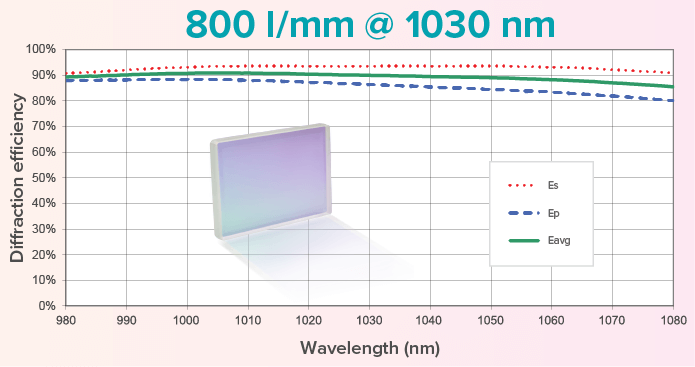

Grating: 800 l/mm @ 1030 nm CWL:

$1,100.00

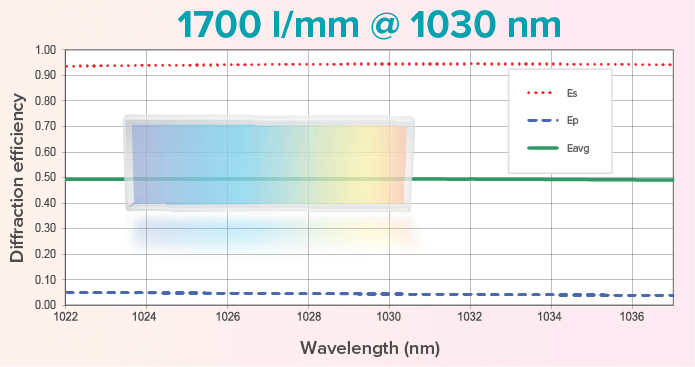

Grating: 1700 l/mm @ 1030 nm CWL:

$2,150.00
